The Door

Everything you need to know
about this door.

This is the page a serious buyer reads twice. And the one a professional sends to their client.

The Story Engineering Protection The Lock Installation Specs
How this door came to be

Built by the one person who knew
exactly how to defeat any door ever made.

The engineer behind this system spent years as a United States Navy SEAL breacher. One of a small, specialized group trained to defeat any barrier standing between a SEAL team and its objective. Steel doors. Reinforced gates. Locks of every kind. If it blocked entry, he knew precisely how to defeat it.

Then he came home one night and found his own front door kicked in. One kick. Sent the deadbolt right through the frame. The strike plate was on the floor. His family had not been home. He has never stopped thinking about what would have happened if they had been.

He went looking for a real solution. Vault doors at 800 pounds requiring structural engineering. Steel security doors that announced themselves to every visitor. Nothing that disappeared into the architecture of a home the way a real solution should.

So he built it himself. Fifteen years of refinement. Twelve years on the market. Engineering consultants. Materials testing. Problems encountered and solved one by one.

The result is the door on this page.

The engineering

Ordinary on the outside.
Extraordinary on the inside.

From the outside this door is indistinguishable from any other door in your home. Same wood species. Same paint or stain down to the exact formula. Same panel profile. Same hardware. To anyone who sees it, it is simply a door.

Behind that appearance is a completely different structural reality.

A custom fabricated stainless steel internal mechanism. Hand welded. Patent pending. When the deadbolt turns, one single throw, nine independent structural locking points engage simultaneously throughout the entire door frame.

The force of a kick, a battering ram, or repeated impact is not absorbed by a single point the way a standard door is. It is distributed across the entire frame of the house. There is no weak point. There is no concentrating the force and breaking through.

One deadbolt throw. Nine independent locking points. Force distributed across the entire frame of the house, not concentrated at a single point.

Nine point locking system engaging

One turn. Nine points. Every time.
Integrated impact & ballistic protection.

Protection

Impact & Ballistic Protection.
Built into every door.

Every Invisible Security Door is built with two layers of full coverage impact and ballistic rated panels. They cover the entire door, not just a section of it. Full coverage means exactly that.

The primary concern for most clients is forced entry. Kicking. Battering. Repeated impact. The panels are engineered to absorb and distribute that force in combination with the nine point locking system. The door does not yield.

The ballistic protection is the detail that makes jaws drop. UL 752 certified. This is the universal standard for ballistic resistance, the same certification used in banks, embassies, and government facilities. Built into a door that looks like every other door in your home. These panels also carry a one hour fire rating. A detail most clients never need. One that matters when they do.

No other residential door on the market combines this level of protection with complete visual invisibility.

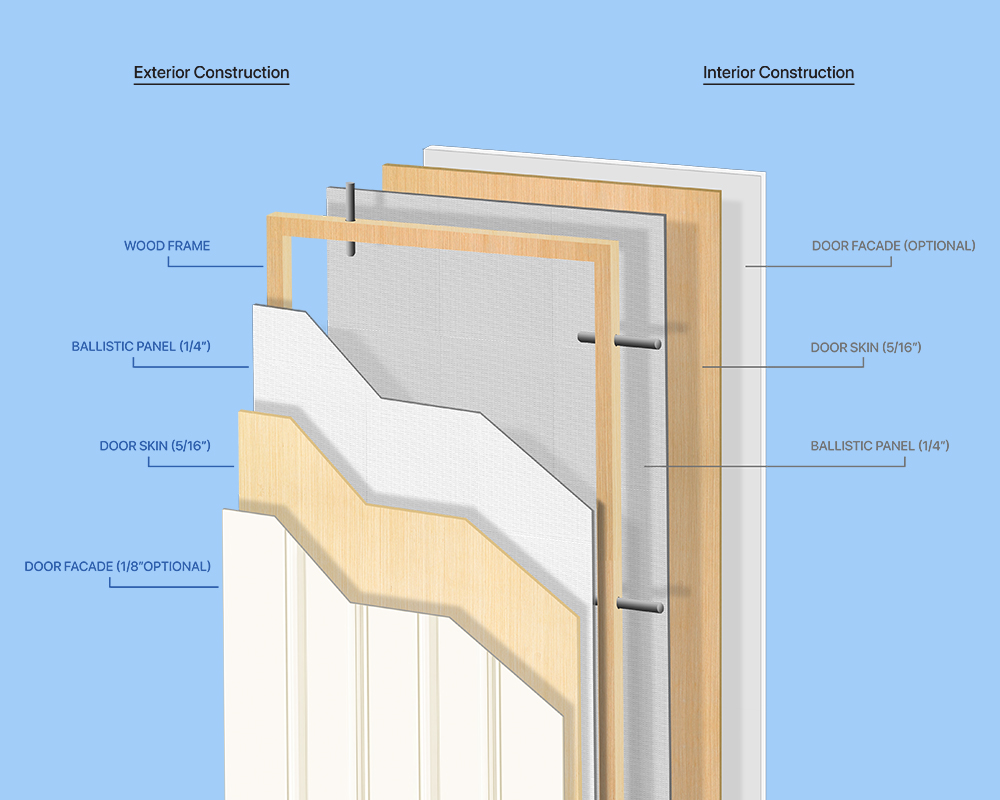

Invisible Security Door internal engineering cutaway
2 Layers of full coverage impact and UL 752 certified ballistic panels. One hour fire rated. Built into every door.
9 Independent structural locking points engage simultaneously on a single deadbolt throw. Force distributed across the entire frame.
The lock

The lock is unlike anything
you have encountered before.

The moment you hold this key you will know something serious is happening. It is visually unlike any standard key. That is the first signal that this door operates at a completely different level.

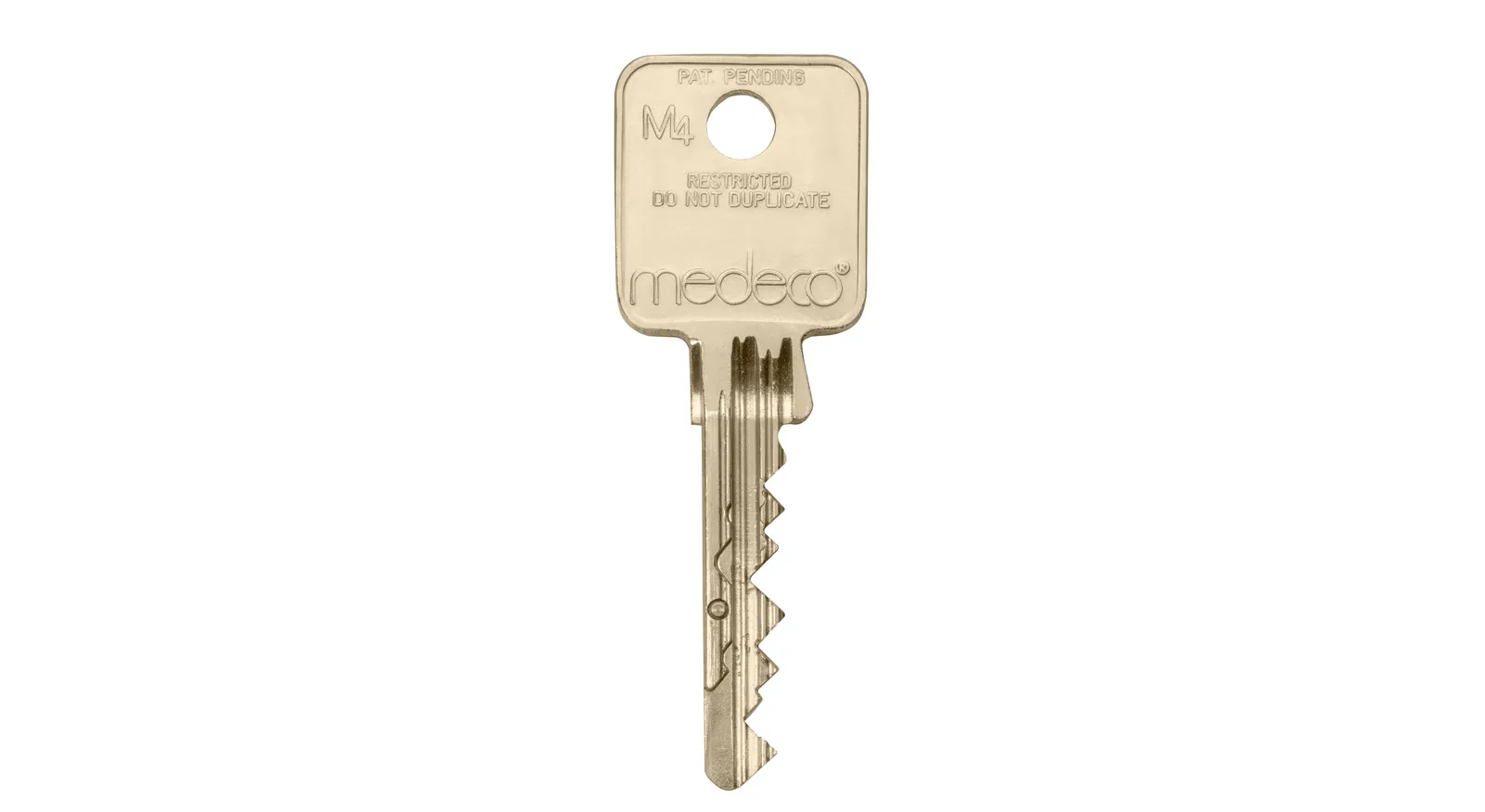

The Invisible Security Door key

Restricted. Patent protected.
Cannot be duplicated without authorization.

The lock cylinder is engineered to resist picking at every level. The design includes multiple pin types and a patented movable element that defeats both traditional picking and modern 3D printed key attempts. Someone cannot photograph your key and have a copy made.

Key control is absolute. Your keys cannot be duplicated without authorization. Not at a hardware store. Not at a locksmith without credentials. The blanks are restricted and require a specialized cutting machine available only through authorized channels.

You do not have to worry about a contractor, a housekeeper, or anyone else having a copy made. The system simply does not allow it.

The cylinder is certified to the highest universal standard for endurance, drill resistance, pick resistance, and resistance against forced attack. The bolt is hardened steel. The collar spins under wrench pressure to defeat torque attacks. A steel shroud protects against ice pick and probe attacks.

Protected against drilling, picking, bumping, wrenching, ice pick attacks, and 3D printed key duplication. Every attack vector. Every time.

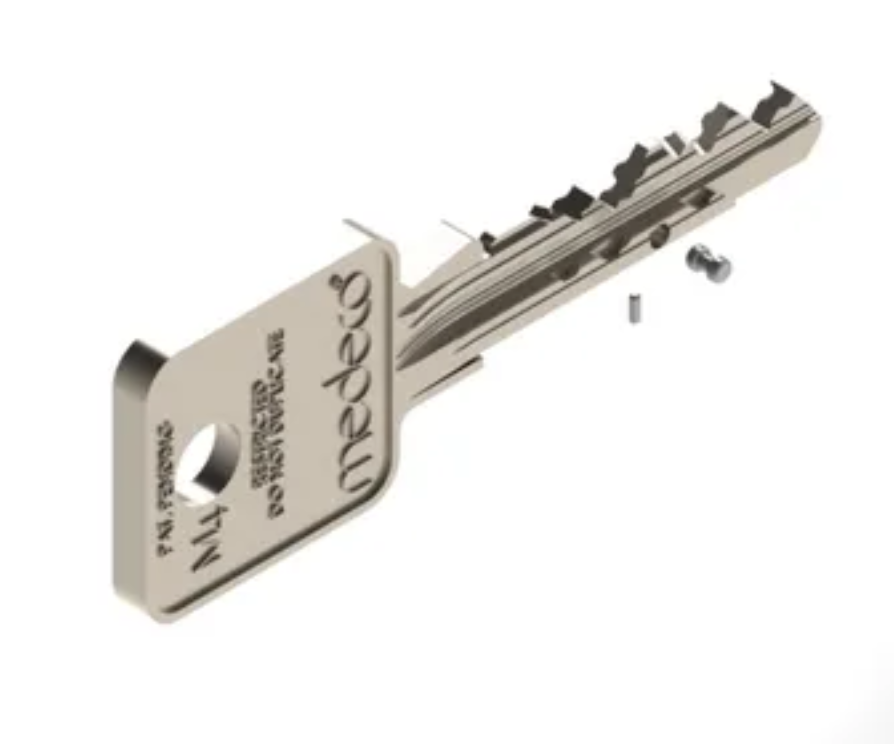

Key internal pin detail

Yes, the key has a pin in it. Makes lock picking and key copying virtually impossible.

Three configurations

Three configurations.
One for every application.

Every installation is different. Every space has different requirements. Three lock configurations are available ... each engineered for a specific purpose. Your consultation will determine which is right for each space.

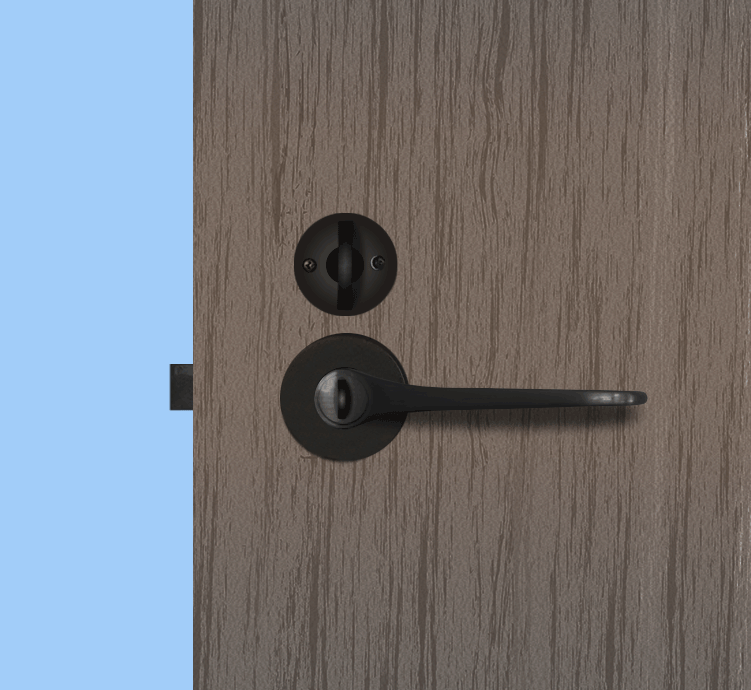

Vault Lock
Most Popular

Vault Lock

Key outside. Thumb turn inside. The most versatile configuration and the right choice for most applications. Ideal for master closets, home offices, master bedrooms, and main entries. Locks and unlocks from either side.

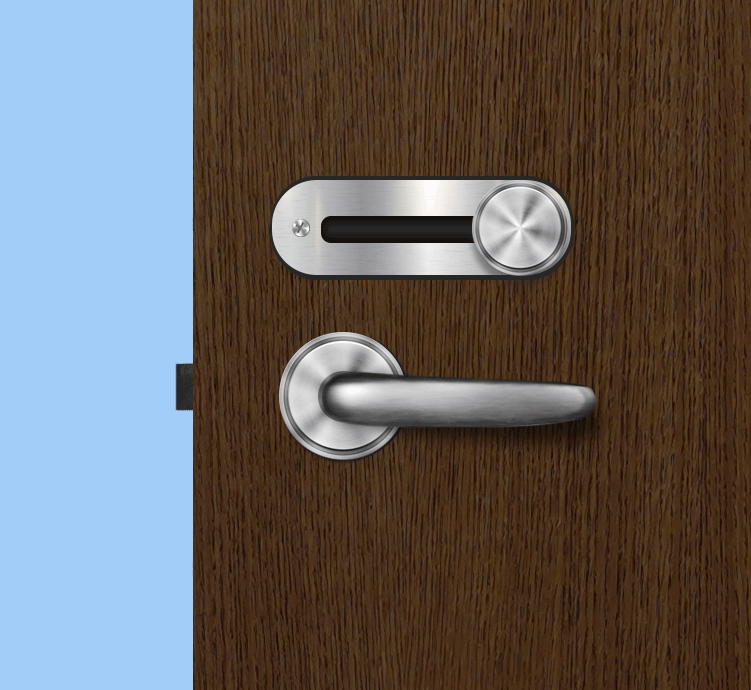

Citadel Lock
Personal Protection

Citadel Lock

Inside operation only. No exterior lock cylinder is exposed. Nothing to pick from the outside because there is nothing there. The highest level of protection for personal safety rooms and spaces where one-way security from the inside is the priority.

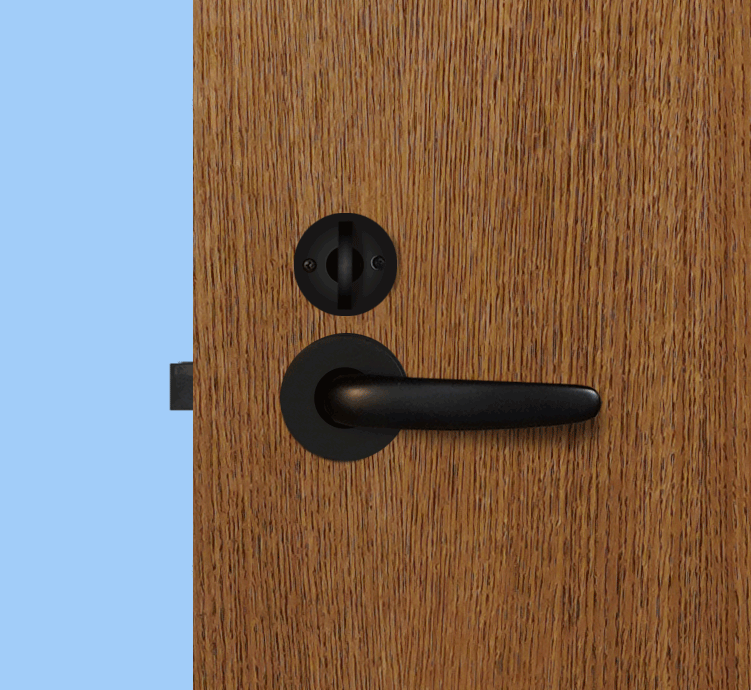

ADA Compliant Lock
Accessible Option

ADA Compliant Lock

Designed for accessibility compliance. Suitable for commercial applications, institutional spaces, and residential installations requiring ADA compatible operation. The same level of protection and the same visual invisibility. Fully accessible for all users.

Appearance and installation

The door that disappears
into your home completely.

Every Invisible Security Door is built to order. There is no standard configuration, no catalog option, no compromise on appearance. The door is matched to your home exactly.

Same wood species. Same paint color down to the exact formula. Same stain. Same panel profile. Same hardware finish. We can replicate any existing door in your home so precisely that no one entering will notice anything has changed.

In many installations we take the skin off an existing door and place it directly onto the new frame. The same door you walked past for years, now has an entirely different structure inside it.

Each door weighs between 140 to 215 pounds depending on size. Installation requires no wall reinforcement, and is supported by commercial ball bearing hinges and the frame itself. Custom designed screws and strike plates anchor directly into the studs on all sides.

Full jamb replacement is included with all doors.

There is also a door-only replacement option available when a full jamb replacement is not possible. This is often due to tile, marble, mirrors, or other finishes that make a full jamb replacement cost prohibitive.

Installation is coordinated through your consultation. We work with your builder, contractor, or preferred installer to ensure a seamless fit.

From the day it is installed, there is nothing to notice. That is the entire point.

Invisible Security Door lock detail
Full specifications

Every detail.
Every specification.

Locking system Patent-pending custom stainless steel mechanism. Hand welded. One deadbolt throw activates 9 independent structural locking points simultaneously. Force distributed across the entire door frame.
Impact & ballistic protection Two layers of full coverage panels providing both impact resistance and UL 752 certified ballistic protection. Engineered to resist forced entry and ballistic threat. Full door coverage. One hour fire rated.
Lock cylinder High security cylinder. UL 437 certified for drill, pick, and forced attack resistance. Patented key control. Keys cannot be duplicated without authorization.
Key Restricted patent-protected key. Visually unlike any standard key. Cannot be duplicated at hardware stores or standard locksmiths. Patented movable element including an internal pin that defeats 3D printed copies.
Construction Custom stainless steel internal mechanism. Hand welded. Patent pending.
Appearance 100% custom. Any architectural style. Any wood species. Any paint color or stain formula. Can replicate any existing door in your home exactly. Can accept existing door skin for a perfect visual match.
Installation Supported by commercial ball bearing hinges and the frame itself. Custom designed screws and strike plates anchor into studs on all sides. No wall reinforcement required. Full jamb replacement included with all doors. Door-only option available where a full jamb replacement is not possible.
Weight 140 to 215 lbs depending on size.
Lead time 8 to 10 weeks in most cases.
Lock configurations Vault Lock (key outside, thumb turn inside). Citadel Lock (inside only, no exterior cylinder). ADA Compliant Lock (accessible operation).

Have more questions about the door? Visit our FAQ

Ready to configure yours?

Every secure space begins with a single conversation. Tell us which spaces you are considering and where you are located. Everything you share stays between us.

No showroom. No sales floor. No names shared. Ever.
Begin Your Consultation
